LIEBHERR D934, D936 DIESEL ENGINE SERVICE REPAIR MANUAL

LIEBHERR D934, D936 DIESEL ENGINE SERVICE REPAIR MANUAL

This is the COMPLETE Service Repair Manual for the LIEBHERR D934, D936 DIESEL ENGINE. This manual contains service, repair procedures, assembling, disassembling, wiring diagrams and everything you need to know.

The Service Manual contains detailed information, electrical and hydraulic diagrams, actual real photo illustrations and schemes, which give you complete step-by-step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine. this manual offers full information you need for repair your machine. the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service. YOU CAN DO THE REPAIRS YOURSELF AND SAVE MONEY $$$

Service Repair Manual Contains:
=========
1. Product description

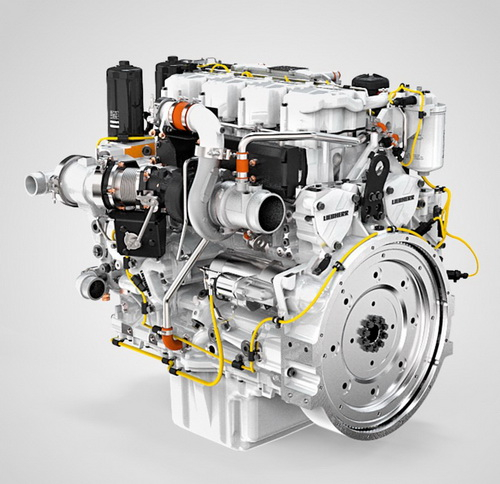

1.1. Illustration of engine 936L
1.2. Technical description
1.3. Special equipment for diesel engine
1.4. Engine classification, engine identification plates, engine number
1.5. Technical data, adjustment values and test values
1.6. Tightening specifications
1.7. Screw tightening values
2. Description of basic engine
2.1. Engine
2.2. Crankcase breather
3. Cylinder head
3.1. Description of cylinder head
3.2. Cylinder head and cylinder head gasket (diagram)
3.3. Replacing the cylinder head gasket
3.4. Carrying out a compression test
4. Lube oil circuit
4.1. Lube oil circuit diagram
4.2. Lube oil pump
4.3. Oil filter
4.4. Oil cooler
4.5. Leakages in the oil cooler
4.6. Oil sump
4.7. Causes of oil pressure problems
4.8. Fuel in thr oil
5. Water circuit
5.1. Diagram of the water circuit
5.2. Cooling water – thermostat
5.3. Cooling water pump
5.4. Dismantling the coolant water pump
5.5. Cooling water in the fuel
6. Suction side
6.1. Exhaust turbocharger
6.3. Heater flange
7. Exhaust side
7.1. iAGR
7.2. eAGR
7.3. Engine brake
7.4. Description of the auxiliary brake system (ZBS)
8. Description of the electronic injection system
8.2. Engine control unit with schematic connection
8.3. Diagnostic description
8.4. Diagnosis and service
8.5. Connection diagram of the sensors
8.6. Sensors
8.7. Electrical system
8.8 Configuration of pump-/nozzle units (PLD-ENGINES ONLY)
9. Description of the mechanical injection system
9.1. Functional description
9.2. Low-pressure circuit
9.3. Checking the low-presure circuit
9.4. Fuel pump ZP 18.5
9.5. Fuel filtering
9.6. Fuel lines
9.7. Draining the upper fuel duct
9.8. Draining the lower fuel duct
9.9. Diagram of pump/nozzle unit with injection nozzle
9.10. Installing and dismantling the pump element (UP 20) with roller tappet
9.11. Bleeding the fuel system
9.12. Diagram of the injection nozzle and pressure pipe tube
9.13. Checking the injection nozzle
9.14. Oil in the fuel system
10. Description of accessories
10.1. Diagram of auxiliary drives
10.2. Air compressor
10.3. Drive for generator and air-conditioning compressor
10.4. Checking the condition of the ribbed V-belt
11. Electrical system
11.1. Starter
11.2. Checking the starter
11.3. Checking the alternator
11.4. Heater flange
12. Maintenance
12.1. Maintenance chart
12.2. Setting the valves
12.3. Setting the valves for the engine auxiliary brake system (ZBS)
13. Fuels
14. Mechanical fault list
15. Electronic fault list
16. Description of level – 1 Parameters and measuring points

===========

** Model Specification: LIEBHERR D934, D936 DIESEL ENGINE
** Language: English
** Total Pages: 179
** File Format: PDF
** Requirements: Adobe PDF Reader
** Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…

===========
