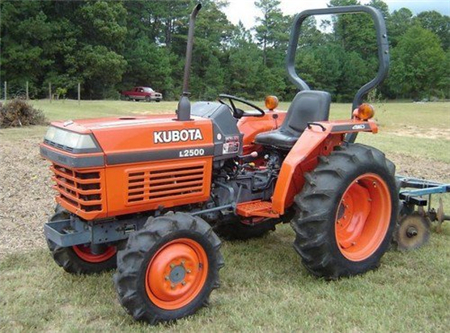

This is the COMPLETE Parts Manual for the Kubota L2500F Tractor. Designed for the repair shops and individuals when ordering parts for their Kubota L2500F Tractor. This Manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement. it Covers every part of your Kubota L2500F Tractor inside and out. Tons of pictures and diagrams at your fingertips!
PARTS MANUAL CONTAINS:
=========
ENGINE
CRANKCASE
OIL PAN
PISTON/CRANKSHAFT
MAIN BEARING CASE
FLYWHEEL
CYLINDER HEAD
VALVE AND ROCKER ARM
NOZZLE HOLDER/GLOW PLUG
NOZZLE HOLDER [COMPONENT PARTS]
CYLINDER HEAD COVER
INLET MANIFOLD
AIR CLEANER
EXHAUST MANIFOLD
MUFFLER
UNDER MUFFLER [OPTION]
CAMSHAFT
GEAR CASE
WATER PUMP
WATER FLANGE AND THERMOSTAT
FUEL CAMSHAFT
INJECTION PUMP
INJECTION PUMP [COMPONENT PARTS]
ENGINE STOP LEVER
SPEED CONTROL PLATE
GOVERNOR
UPPER GASKET KIT
LOWER GASKET KIT
STOP ROD
HAND ACCELERATOR LEVER
FUEL SYSTEM
FUEL TANK
FUEL FILTER/FUEL PIPE
COOLING WATER SYSTEM
FAN
WATER PIPE
RADIATOR
SHUTTER [MANUAL STRG.]
ELECTRICAL SYSTEM
ALTERNATOR
ALTERNATOR [COMPONENT PARTS]
STARTER
STARTER [COMPONENT PARTS]
BATTERY
SWITCH
LIGHT
METER
ELECTRICAL WIRING
CLUTCH
CLUTCH LEVER
CLUTCH PEDAL
CLUTCH HOUSING
TRANSMISSION
TRANSMISSION CASE
MAIN SHAFT
COUNTERSHAFT
PTO COUNTERSHAFT
REVERSE SHAFT
SPEED CHANGE LEVER
MAIN GEAR SHIFT LEVER
PTO GEAR SHIFT LEVER
MAIN GEAR SHIFT FORK
PTO GEAR SHIFT FORK
RANGE GEAR SHIFT FORK AND LEVER
REAR AXLE/REAR WHEEL
SPIRAL BEVEL PINION
REAR DIFFERENTIAL
DIFFERENTIAL LOCK PEDAL
REAR AXLE
REAR WHEEL (9.5-24)
REAR WHEEL (11.2-24)
REAR WHEEL (13.6-16)
REAR WHEEL (355/80-D20)
BRAKE
BRAKE PEDAL
PARKING BRAKE LEVER
FRONT AXLE/FRONT WHEEL/CHASSIS
FRONT AXLE
KNUCKLE SHAFT
FRONT WHEEL (4.00-15)
FRONT WHEEL (5.00-15)
FRONT WHEEL (23X8.50-12)
FRONT WHEEL (25X8.50-14)
FRONT AXLE FRAME
STEERING
STEERING LINKAGE (DRAG LINK)
STEERING LINKAGE (TIE ROD)
MANUAL STEERING AND HANDLE (MS)
MANUAL STEERING [COMPONENT PARTS]
HYDRAULIC SYSTEM
HYDRAULIC PUMP
HYDRAULIC PUMP [COMPONENT PARTS]
HYDRAULIC OIL LINE
CONTROL VALVE
CONTROL VALVE (POSITION CONTROL) [COMPONENT PARTS]
CONTROL VALVE (DRAFT) [OPTION] [COMPONENT PARTS]
DRAFT CONTROL VALVE [OPTION]
DRAFT CONTROL VALVE [OPTION] [COMPONENT PARTS]
HYDRAULIC CYLINDER
CYLINDER FRONT COVER
LIFT ARM
FEED BACK LEVER
POSITION CONTROL LEVER
3-POINT LINKAGE 1 (LOWER LINK/TOP LINK)
3-POINT LINKAGE 2 (LIFT ROD)
TOP LINK BRACKET/LOWER LINK HOLDER
TOP LINK BRACKET (WITH DRAFT CONTROL) [OPTION]
HITCH/DRAWBAR
DRAWBAR/HITCH
PTO SHAFT PROTECTOR
HOOD(BONNET)/ROPS
FRONT GRILLE
HOOD (BONNET)
HOOD (SIDE COVER)
REAR HOOD (BONNET)
FENDER
FENDER SUPPORT
SEAT
STEP
ROPS
LABEL 1
LABEL 2
ACCESSORIES AND SERVICE PARTS
=========
Model Specification: Kubota L2500F Tractor
Language: English
Total Pages: 228
File Format: PDF
Requirements: Adobe PDF Reader
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…
=========
This QUALITY manual is 100 percents COMPLETE and INTACT,
no MISSING/CORRUPT pages/sections to freak you out! It also is Bookmarked and SEARCHABLE to make what you need easy to find. Complete download comes in PDF format which can work under all PC based Windows operating system and Mac also. It saves to your hard-drive and can be burned to CD-ROM. It can be viewed on any computer, as well as zoomed and printed.
