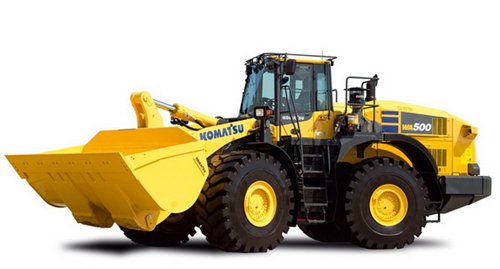

Komatsu WA500-7 Wheel Loader Field Assembly Manual

Komatsu WA500-7 Wheel Loader Field Assembly Manual (Serial Number: 10001 and up)

COMPLETE Field Assembly Manual for the Komatsu WA500-7 Wheel Loader. It provides you with everything you need to know in order to assembly your Komatsu WA500-7 Wheel Loader safely and effectively. Step-by-step assembly procedure, parts installation, adjustment and maintenance procedure after completion of assembly.

SERIAL NUMBERS: WA500-7 10001 and up
ENGINE 6D140E-6

Field Assembly Manual Contains:
=========
0000 Transportation posture table
0010 Installation of additional weight and counterweight (1/8) to (8/8)
0020 Installation of muffler stack
0030 Installation of work equipment (Installation of work equipment (1/6) to (6/6))
0040 Installation of work equipment (Installation of bucket (1/3) to (3/3))
0050 Installation of work equipment (Greasing after installation of work equipment (1/2) to (2/2))
0060 Installation of work equipment (Installation of boom potentiometer (1/2) to (2/2))
0070 Installation of work equipment (Installation of bucket potentiometer wiring harness)
0080 Adjustment work after installation (Adjusting machine monitor (1/11) to (11/11))
0090 Adjustment work after installation (Greasing after adjustment of monitor (1/2) to (2/2))
0100 Installation of air cleaner cap
0110 Installation of R.H. platform and handrail (1/8) to (8/8)
0120 Installation of cab (Necessary tools and General tightening torque list)
0130 Installation of cab (Split cab parts list)
0140 Disassembly of cab (Preparation for transportation) 1
0150 Disassembly of cab (Preparation for transportation) 2
0160 Disassembly of cab (Preparation for transportation) 3
0170 Disassembly of cab (Preparation for transportation) 4 (1/4) to (4/4)
0180 Disassembly of cab (Preparation for transportation) 5 (1/7) to (7/7)
0190 Disassembly of cab (Preparation for transportation) 6 (1/5) to (5/5)
0200 Disassembly of cab (Preparation for transportation) 7 (1/2) to (2/2)
0210 Field assembly (Assembly of cab) 1 (1/2) to (2/2)
0220 Field assembly (Assembly of cab) 2 (1/2) to (2/2)
0230 Field assembly (Assembly of cab) 3 (1/11) to (11/11)
0240 Field assembly (Assembly of cab) 4 (1/4) to (4/4)
0250 Field assembly (Assembly of cab) 5
0260 Field assembly (Assembly of cab) 6 (1/2) to (2/2)
0270 Charging refrigerant
0280 Final check (Operation check of accelerator, brake,and work equipment)
Appendix Field assembly inspection report

=========
