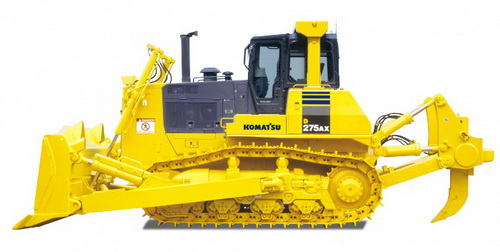

Komatsu D275AX-5E0 Bulldozer Field Assembly Manual

Komatsu D275AX-5E0 Bulldozer Field Assembly Manual (Serial Number: 40001 and up)

COMPLETE Field Assembly Manual for the Komatsu D275AX-5E0 Bulldozer. It provides you with everything you need to know in order to assembly your Komatsu D275AX-5E0 Bulldozer safely and effectively. Step-by-step assembly procedure, parts installation, adjustment and maintenance procedure after completion of assembly.

SERIAL NUMBERS: 40001 and up

Field Assembly Manual Contains:
Precautions for field assembly
Assembly procedure, necessary equipment, and schedule
Layout of kit
Style for transportation
Tools list for field assembly
Sketch of tools
Tightening torque
Coating materials.
A. Assembly procedure
A-1. Installation of chassis
A-2. Installation of track frame
A-3. Installation of ripper
A-4. Adding oil to pivot chamber
A-5. Installation of track shoes
A-6. Assembly of blade (For Semi-U-dozer U-dozer)
A-7. Assembly of blade (For Sigmadozer)
A-8. Installation of blade
A-9. Installation of operator’s cab
A-10. Installation of ROPS
A-11. Check of track tension
A-12. Check of oil and coolant levels
A-13. Lubricating
A-14. Bleeding air from hydraulic cylinders
A-15. Installation of KOMTRAX antenna
A-16. Installation of lunchbox band (if equipped)
M. Check and maintenance procedures after completion of assembly
M-1. Check and adjustment of operator’s cab
M-2. Inspection of machine monitor
M-3. Replacement of return filter (Standard filter to flushing filter)
M-4. Flushing of hydraulic circuit, and bleeding air from hydraulic cylinders (Part 1)
M-5. Replacement of return filter (Flushing filter to standard filter)
M-6. Bleeding air from hydraulic cylinders (Part 2)
Field assembly inspection report


** Model Specification: Komatsu D275AX-5E0 Bulldozer
** Language: English
** Total Pages: 132
** File Format: PDF
** Requirements: Adobe PDF Reader
** Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…
