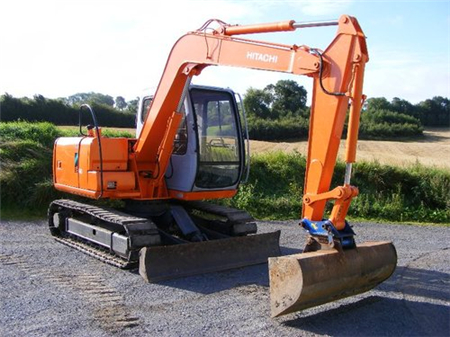

Hitachi EX80u Excavator Service Repair Manual + Circuit Diagram & Harness

Hitachi EX80u Excavator Service Repair Manual + Circuit Diagram & Harness

This is the COMPLETE Service Repair Manual for the Hitachi EX80u Excavator. It contains deep information about maintaining, assembly, disassembly and servicing your Hitachi EX80u Excavator.

This Manual contains information and data to this model. has specs, diagrams, and actual real photo illustrations, and schemes, which give you complete step by step operations on repair, Diagnosing, servicing, technical maintenance & troubleshooting procedures for your machine. this manual offers full information you need for repair your machine. the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service. YOU CAN DO THE REPAIRS YOURSELF AND SAVE MONEY $$$

Service Repair Manual Contains:
=========
Workshop Manual Contents:
INTRODUCTION
SAFETY
SECTION 1 GENERAL INFORMATION
Group 1 Precautions for Disassembling and Assembling
Group 2 Tightening Torque
SECTION 2 UPPERSTRUCTURE
Group 1 Cab
Group 2 Counterweight
Group 3 Main Frame
Group 4 Pump Device
Group 5 Control Valve
Group 6 Swing Device
Group 7 Pilot Valve
Group 8 Pilot Shut-Off Valve
Group 9 Shockless Valve
Group 10 Solenoid Valve
SECTION 3 UNDERCARRIAGE
Group 1 Swing Bearing
Group 2 Travel Device
Group 3 Center Joint
Group 4 Track Adjuster
Group 5 Front Idler
Group 6 Upper and Lower Roller
Group 7 Track
SECTION 4 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
SECTION 5 ENGINE AND ACCESSORY
Group 1 General
Group 2 Inspection and Maintenance
Group 3 Engine Servicing
Group 4 Engine Main Body Overhauling
Group 5 Service Data
Group 6 Trouble Shooting

Technical Manual (Operational Principle) Contents:
INTRODUCTION
SECTION 1 GENERAL
Group 1 Specification
Group 2 Component Layout
SECTION 2 SYSTEM
Group 1 Control System
Group 2 Hydraulic System
Group 3 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 Swing Device
Group 3 Control Valve
Group 4 Pilot Valve
Group 5 Travel Device
Group 6 Others (Upperstructure)
Group 7 Others (Undercarriage)

Technical Manual (Troubleshooting) Contents:
INTRODUCTION
SAFETY
SECTION 4 OPERATIONAL PERFORMANCE TEST
Group 1 Introduction
Group 2 Standard
Group 3 Engine Test
Group 4 Excavator Test
Group 5 Component Test
Group 6 Adjustment
SECTION 5 TROUBLESHOOTING
Group 1 General
Group 2 Component Layout
Group 3 Troubleshooting A
Group 4 Troubleshooting B
Group 5 Troubleshooting C
Group 6 Electrical System Inspection

Circuit Diagram & Harness Contents:
EX80U HYDRAULIC CIRCUIT DIAGRAM
EX80U ELECTRICAL CIRCUIT DIAGRAM
EX80U CONNECTORS
EX80U ENGINE HARNESS
EX80U CAB HARNESS

=========

** Model Specification: Hitachi EX80u Excavator
** Language: English
** File Format: PDF
** Requirements: Adobe PDF Reader & WinZip
** Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…

=========

This QUALITY manual is 100 percents COMPLETE and INTACT,
no MISSING/CORRUPT pages/sections to freak you out! It also is Bookmarked and SEARCHABLE to make what you need easy to find. Complete download comes in PDF format which can work under all PC based Windows operating system and Mac also. It saves to your hard-drive and can be burned to CD-ROM. It can be viewed on any computer, as well as zoomed and printed.

Thanks for Visiting!
