Genie GTH-4016SR, GTH-4018SR Telehandler Parts Manual

Genie GTH-4016SR, GTH-4018SR Telehandler Parts Manual #2

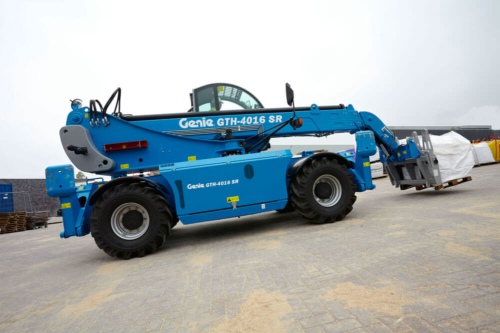

This is the COMPLETE Parts Manual for the Genie GTH-4016SR, GTH-4018SR Telehandler. Designed for the repair shops and individuals when ordering parts for their Genie GTH-4016SR, GTH-4018SR Telehandler. This Manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement. it Covers every part of your Genie GTH-4016SR, GTH-4018SR Telehandler inside and out. Tons of pictures and diagrams at your fingertips!

Serial Number Range:
from SN 20422 to 20583
from SN 20585
from SN 20173 to 20558
from SN 20599 to 20662
from SN 20624 to 20707
from SN 20709

Parts Manual Contains:
=========
How to Read Your Serial Number
Parts Stocking List
How to Order Parts
Service Parts Fax Order Form
100 Decals
101.1 606800 Decals, View 1
102.1 606801 Decals, View 2
200 Drive Chassis Components
201.1 606802 Basic Frame Schiassis
202.1 606803 Engine Casing Unit
203.1 606804 Turret Chassis – View 1
204.1 606805 Turret Chassis – View 2
205.1 606806 Transmission And Wheels
206.1 606807 Hydraulic Oil – Diesel Tanks
207.1 606808 Outriggers ONLY GTH 4016SR
208.1 606809 Outriggers ONLY GTH 4018SR – Part 1
209.1 606810 Outriggers ONLY GTH 4018SR – Part 2
210.1 606811 Front Axle – Housing
211.1 606812 Front And Rear Axle – Differential
212.1 606813 Front And Rerar Axle – Bevel Gear Seat
213.1 606814 Front And Rear Axle – Double U – Joint Hub And Final Reduction
214.1 606815 Front And Rear axle – Steering Cylinder And Swivel Housing
215.1 606816 Front And Rear Axle – Brakes
216.1 606817 Rear Axle – Housing
217.1 606818 Transmission Housing
218.1 606819 Transmission Gear And Shafts
219.1 606820 Transmission Rear Support
300 Engine Components
301.1 606821 Diesel Engine
302.1 606822 Engine Cooling System, air Filter
303.1 606823 Engine Heatsink
304.1 606824 Exhaust System And Accelerator
305.1 606825 Hydraulic Pumps
400 Cab
401.1 606826 Cab, View 1
402.1 606827 Cab, View 2
403.1 606828 Cab, View 3
404.1 606829 Cab, View 4
405.1 606830 Seat Assembly
406.1 606831 Dashboard
407.1 606832 Heater, Cab Part
408.1 606833 Heater, Engine Part
409.1 606834 Heater, Fan And Element
500 Boom Components
501.1 606835 1st Telescopic Element GTH 4016SR
502.1 606836 2nd – 3rd Telescopic Element GTH 4016SR
503.1 606837 Arm 1st – 2nd TelescopicElement GTH 4018SR
504.1 606838 Arm 3rd – 4th Telescopic Element GTH 4018SR
505.1 606839 Chain Unit 1st Boom Section GTH 4018SR
506.1 606840 Chain Unit 2nd Boom Section GTH 4018SR
507.1 606841 Chain Unit 3rd Boom Section GTH 4018SR
508.1 606842 Chain Unit 4th Boom Section GTH 4018SR
509.1 606843 Stop Spacer Boom Section GTH 4018SR
510.1 606844 Coupling Unit
511.1 606845 Forks
512.1 606846 Lifting Cylinder – Tilt Cylinder – Fork Levelling Cylinder
513.1 606847 Boom Extension Cylinder GTH 4016SR
514.1 606848 Boom Extension Cylinder GTH 4018SR
600 Hydraulic System
601.1 606849 Boom Extension Cylinders ONLY GTH-4016SR
602.1 606850 Boom Extension Cylinder ONLY GTH-4018SR
603.1 606851 Fork Balancing Cylinders ONLY GTH-4016SR
604.1 606852 Fork Balancing Cylinders ONLY GTH-4018SR
605.1 606853 attachment ONLY GTH-4016SR
606.1 606854 Attachment GTH-4018SR
607.1 606855 Rear Axle Pivoting Cylinders
608.1 606856 Front Outriggers ONLY GTH-4016SR
609.1 606857 Hoses fittings Holder Plate
610.1 606858 Rear Outriggers ONLY GTH-4016SR
611.1 606859 Front Outriggers ONLY GTH-4018SR
612.1 606860 Rear Outriggers ONLY GTH-4018SR
613.1 606861 Lift Cylinder
614.1 606862 Turret Rotation
615.1 606863 Service Brake, parking Brake, Differential Lock Solenoid Valve – Part 1
616.1 606864 Service Brake, Parking Brake, Differential Lock Solenoid Valve – Part 2
617.1 606865 Brakes max Pressure Valve ONLY GTH-4016SR
618.1 606866 Brake And Outriggers Max Pressure Valve ONLY GTH-4018SR
619.1 606867 Main Valve Locking And Outriggers Solenoi Valve Block
620.1 606868 Main Valve – Elements
621.1 606869 Power Steering
622.1 606870 Hydraulic Oil Cooler
623.1 606871 Turret Flexible Hoses Locking System
624.1 606872 Pressure Plugs
625.1 606873 Suction System Hydraulic Pimps
626.1 606874 Hydraulic Transmission
627.1 606875 Shift Gear Solenoid Valve
700 Electric Installation
701.1 606876 Cabin Fuse-Relay Box
702.1 606877 Engine Line
703.1 606878 Base Frame Line
704.1 606879 Turret Base Frame Line – Part 1
705.1 606880 Turret Base Frame Line – Part 2
706.1 606881 Dshboard Line
707.1 606882 Side Cab Line
708.1 606883 Dashboard
709.1 606884 Rear Road Lights
710.1 606885 Connectors
711.1 606886 Connectors
712.1 606887 Connectors
713.1 606888 Connectors
714.1 606889 Connectore
715.1 606890 Connectors
716.1 606891 Connectors
800 Optionals
801.1 606892 Transport Locking Devices
802.1 606893 T.U.V. Dotation
803.1 606894 Plate For Swiss Market
804.1 606895 Hydraulic Jack
805.1 606896 Boom Electric Line – Part 1
806.1 606897 Boom Electric Line – Part 2
807.1 606898 Hydraulic Quick Coupling For Attachment
808.1 606899 Air Conditioning – Cabin Part
809.1 606900 Air Conditioning – Hydraulic Part
810.1 606901 Air Conditioning – Electrical Part
811.1 606902 Man Platform Predisposition – Part 1 – Emergency Pump Kit
812.1 606903 Mixing Bucket Predisposition
813.1 606904 Electrical Predisposition Boom Light, Auxiliary
Hydraulic Circuit GTH 4016SR
814.1 606905 Electrical Predisposition Boom Light, Auxiliary
Hydraulic Circuit GTH 4018SR
815.1 606906 Windscreen Grate
816.1 606907 Windscreen Wiper
817.1 606908 Boom Work Light
818.1 606909 Cabin Work Light
819.1 606910 Auxiliary Hydraulic Circuit
820.1 606911 Emergency Electric Pump
821.1 606912 Auxiliary Joystick
822.1 606913 Twing Hitch
823.1 606914 Optional Attachments – Machine Interface Connectors
824.1 606915 Fem 3 Forks
825.1 606916 Remote Radio Control
826.1 606917 Spare Wheels
Indices
Part Number Index
Part Description Index
Cross References

=========

Model Specification: Genie GTH-4016SR, GTH-4018SR Telehandler
Language: English
Total Pages: 264
File Format: PDF
Requirements: Adobe PDF Reader
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…

=========

This QUALITY manual is 100 percents COMPLETE and INTACT,
no MISSING/CORRUPT pages/sections to freak you out! It also is Bookmarked and SEARCHABLE to make what you need easy to find. Complete download comes in PDF format which can work under all PC based Windows operating system and Mac also. It saves to your hard-drive and can be burned to CD-ROM. It can be viewed on any computer, as well as zoomed and printed.
