Gehl CTL 75 Compact Track Loader Parts Manual

Gehl CTL 75 Compact Track Loader Parts Manual

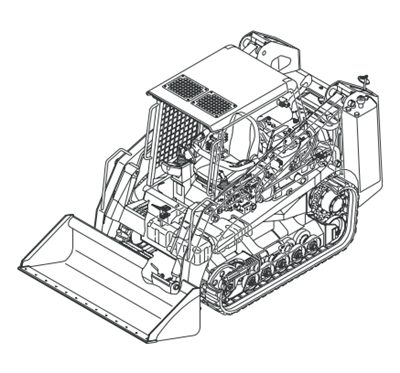

This is the COMPLETE Parts Manual for the Gehl CTL 75 Compact Track Loader. Designed for the repair shops and individuals when ordering parts for their Gehl CTL 75 Compact Track Loader. This Manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement. it Covers every part of your Gehl CTL 75 Compact Track Loader inside and out. Tons of pictures and diagrams at your fingertips!

Parts Manual Contains:
=========
SECTION A: MAIN LOADER COMPONENT
Track Roller A and B
Front Idler
Track Adjuster
Travel Device
Crawler Belt
Mainframe
Lift Arm Stop (with Hook Assembly)
Operation Lever and Stand
Piping; Operation Lever
Engine and Accessories
Drain Plug
Control Box – Right, Left and High-Flow
Engine Control
Electrical
Electrical – Cab
Electrical – High-Flow
Electrical – (Multi-Functional Grip)
Battery
Rear Lamp
Maintenance Light Socket
Control Valve and Accessories
Piping; Hydraulic Tank and Drive Motors (and High-Flow)
Pump Drive and High-Flow Pump Drive
Hydraulic Tank
Fuel Tank and Fuel Piping
Covers – Rear Grille and Engine
Floor Frame
Seat and Seat Components
Restraint Bar
ROPS – Canopy Mount, Canopy, Lights and Harness, and Cab Mount
Mirrors – Rear and Rearview, plus Manual Box
Lift Arm
Attachment System.
Piping; Lift Arm and High-Flow
Auxiliary Hydraulics and High-Flow
Foot Throttle
Decals
SECTION B: HYDRAULIC COMPONENTS
Control Valve
Control Valve – High-Flow
Pilot Valve (RH) Multi-Functional Grip
Pilot Valve (LH) Multi-Functional Grip
Handle – Multi-Functional Grip (with slide switch)
Handle – Multi-Functional Grip (with five switches)
Sub Valve
Solenoid Valve; 1 Block
Electrical Proportion Valve
Lift Cylinder
Tilt Cylinder
Travel Motors
Hydraulic Pump
Gear Pump
Gear Pump – High Flow
SECTION C: KITS AND ACCESSORIES
810946 Universal Radio Kit
810831 Door Kit
Auxiliary Couplers
810901 Side Window Kit
810898 Impact-Resistant Front Door Kit
811344 Pre-Cleaner Kit
811430 Hydraulic Power-A-Tach Kit
811348 HVAC Kit
811428 14-Pin Connector Kit
811605 Counterweight Kit
Numerical Index
O-Ring Table, Coupling & Adapter Torque Table
Torque Specifications Table

=========

Model Specification: Gehl CTL 75 Compact Track Loader
Language: English
Total Pages: 164
File Format: PDF
Requirements: Adobe PDF Reader
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…

=========

This QUALITY manual is 100 percents COMPLETE and INTACT,
no MISSING/CORRUPT pages/sections to freak you out! It also is Bookmarked and SEARCHABLE to make what you need easy to find. Complete download comes in PDF format which can work under all PC based Windows operating system and Mac also. It saves to your hard-drive and can be burned to CD-ROM. It can be viewed on any computer, as well as zoomed and printed.
